| Model Number |
FSHF-1K |
FSHF-1KL |
FSHF-2K |
FSHF-2KL |
FSHF-3K |
FSHF-3KL |
FSHF-6K |
FSHF-6KL |
FSHF-10K |
FSHF-10KL |
| Product Name |

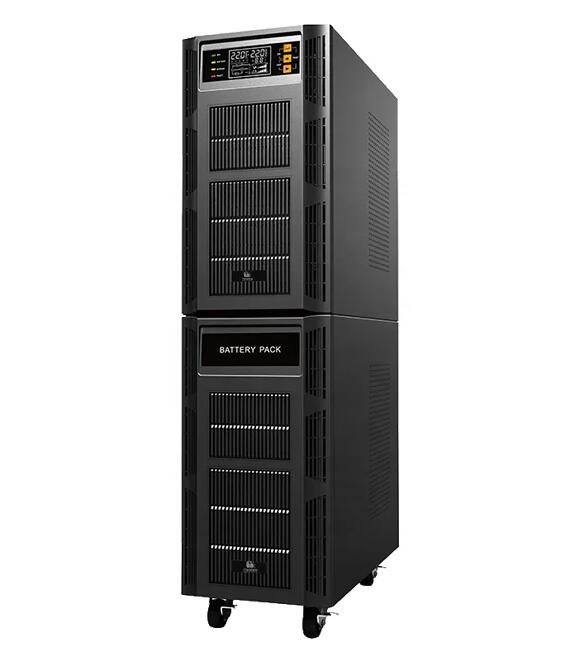

1KVA 2KVA 3KVA 6KVA 10KVA High Frequency Online UPS On-line UPS Uninterrupted Power Supply |
| Type |
Online ups, on-line ups, high frequency online ups, uninterrupted power supply, ups 1kva, ups 2kva, ups 3kva, ups 6kva, ups 10kva, high power power supply, ac power supply |
| Power |
1000VA/800W |
2000VA/2000W |
3000VA/3000W |
6000VA/6000W |
10KVA/10KW |
| Input |
| Power Formats |
L+P+NE |
| Nomimal Voltage |
208/220/230/240VAC |
| Voltage Range |
110~300VAC |
| Power Factor |
>0.99 |
| Frequency Range |
44~56Hz or 54~66Hz |
| Harmonic Distortion |
<3%THD(Linear Load); <5%THD(Non-linear Load) |
| Output |
| Output Formats |
L+N+PE |
| Voltage Output |
208/220/230/240VAC |
| AC Voltage regulation |
±1%(Batt. Mode) |
| Frequency Range |
Line Mode: Synchronized range, Battery Mode: 50/60Hz ± 1% |
| Harmonic Distortion |
<2%THD(Linear Load); <5%THD(Non-linear Load) |
| Power Factor |
1 |
| Overload Capacity |
Line Mode:
1min @105%~125% Load
30s @125%~150% Load
0.5ms @>150% Load |
Line Mode:
30min @102%~105% Load
10min@105%~125% Load
30s @125%~150% Load
500ms @>150% Load |
Battery Mode:
10min @102%~105% Load
1min@105%~125% Load
10s @125%~150% Load
500ms @>150% Load |
| Transfer Time |
AC Mode to Batt Mode:0ms ; Inverter to Bypass:4ms (Typical) |
| Efficiency |
| AC Mode |
Peak efficiency 93% |
Peak efficiency 94% |
Peak efficiency 94% |
Peak efficiency 95.5% |
| Full load efficiency 90% |
Full load efficiency 91% |
Full load efficiency 91% |
Full load efficiency 95% |
| Battery |
Battery Type
(Standard Model) |
Built-in |
External |
Built-in |
External |
Built-in |
External |
Built-in |
External |
Built-in |
External |
| 12V/ 7AH |
36V |
12V/ 7AH |
72V |
12V/ 7AH |
96V |
12V/ 7AH |
192~240V |
12V/ 7AH |
192~240V |
| Quantity |
2 |
3 |
4 |
6 |
6 |
8 |
16 |
16~20 |
16 |
16~20 |
| Charging Time |
Depends on user needs |
| Charging Current |
1.0A (default)
1~12A(Settable) External Battery pack |
5.0A(Default)
1~12A(Settable) |
1.0A (default)
1~12A(Settable) External Battery pack |
5.0A(Default)
1~12A(Settable) |
1.0A (default)
1~12A(Settable) External Battery pack |
5.0A(Default)
1~12A(Settable) |
1.0A (default)
1~12A(Settable) External Battery pack |
5.0A(Default)
1~12A(Settable) |
1.0A (default)
1~12A(Settable) External Battery pack |
5.0A(Default)
1~12A(Settable) |
| Physical |
| Product Size |
286*145*226 |
396*144*225 |
450*192*352 |
395*144*225 |
461*200*800 |
450*192*352 |
461*200*800 |
450*192*352 |
| Weight |
18.6 |
9.0 |
19.0 |
10.0 |
25.0 |
11.0 |
57.0 |
18.0 |
67.6 |
20.0 |
| Environment |
|
| Ambient temperature |
0-40℃ |
| Humidity |
20%~95% (No condensing) |
| Storage temperature |
-15-60 °C (Battery: 0~40C) |
| Altitude |
The altitude should not exceed 1000m,and the height above 1000m should bereduced to a maximum of 4000m.Refer to IEC62040 |
| Indicators |
|
| LCD |
Load level,Battery level,AC mode,Battery mode,Bypass mode,So on |
| Certification |
|
| Certification |
EN/IEC 61000.EN/IEC 62040,GB/T7260,GB/T4943,YD/T1095,TLC |
| Management |
| Interface |
RS232, USB EPO Intelling slot selectable |
| Product specifications are subject to change without notice. |
