网线 |
作者：RAIN 发布日期：2023/12/21 11:21:48 |
| 品名 |

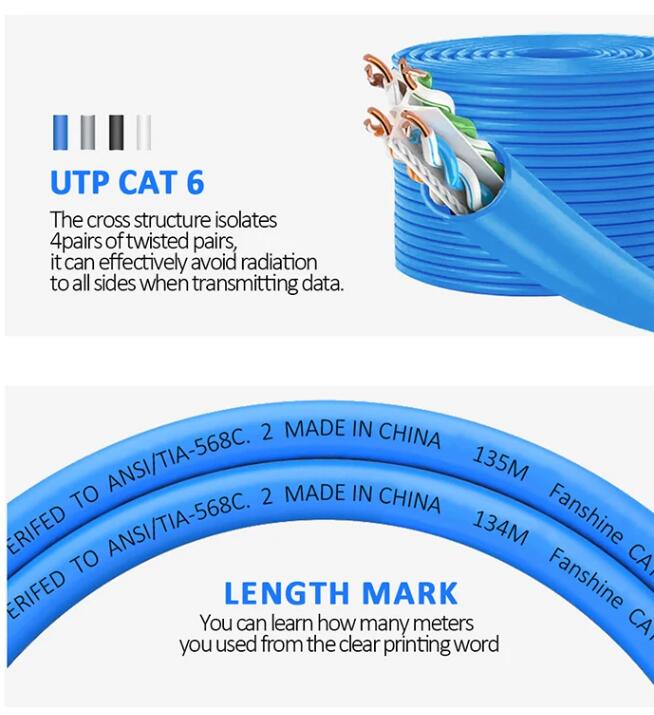

Cat 6 Network Cable |
| 类型 |
UTP |
| 导体尺寸 |
23AWG/24AWG (As Client’s Request) 0.57mm/0.51mm |
| 导体材质 |
Copper Conductor/CCA (As Client’s Request) |
| 线芯数量 |
8 Cores 4 Pairs |
| 结构 |

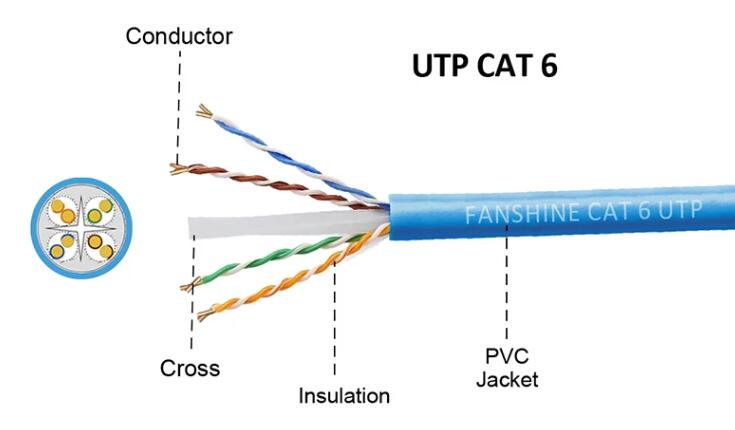

8CU conductors with HDPE Jacket(Insulation)+4 Twisted Pairs + Seperator+Ripcord + PVC jacket |
| 绝缘材料 |
PE, HDPE |
| 导体绝缘直径 |
OD:1.02mm~0.93mm |
| 嵌缝材料 |
PVC, RoHS PVC, LSZH PVC,TPE (As Client’s Request) |
| 外径 |
6.4±0.2mm/6.2±0.2mm |
| 传输频率 |
250MHz |
| 传输速率 |
1000Mbps |
| PVC护套颜色 |
Blue, Black, Grey (As the client’s request) |
| 工作温度 |
-40℃~+75℃ |
| 标记 |
As the client’s request |
| 包装 |
305M/Carton(1000 Feet) |
|
| |
| |
|
|
